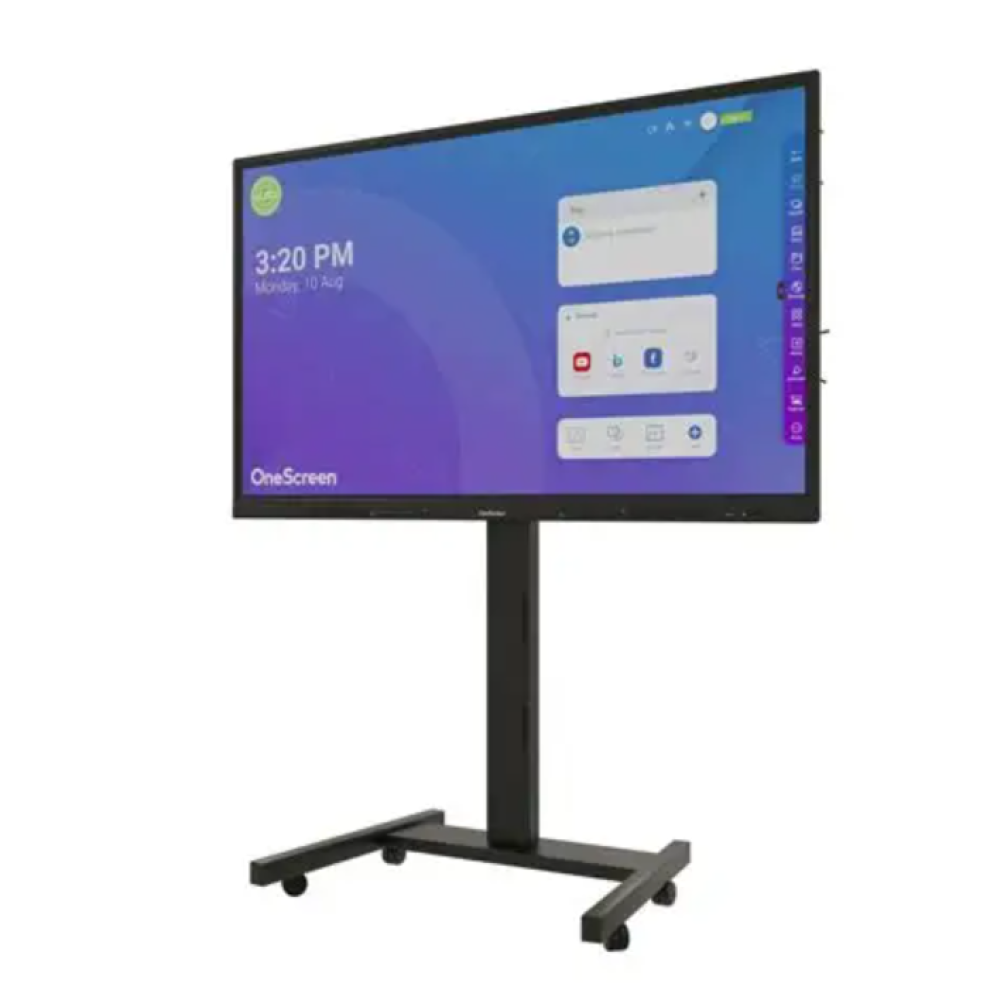

Designed specifically for modern classrooms, the OneScreen TL7 75” Education Edition is a complete interactive learning solution. It combines high-performance hardware with powerful teaching tools to create immersive, collaborative, and engaging educational experiences.
Display & Touch:
- Screen Size: 75 inches (diagonal)
- Resolution: 4K UHD (3840 × 2160)
- Panel Type: LED with anti-glare and anti-fingerprint coating
- Touch Technology: Zero Bonding IR (Gen 2)
- Aspect Ratio: 16:9
- Blue Light Filter: Yes
- Glass Hardness: MoHS Level 7 surface protection
Internal Specs:
- Operating System: Android 11
- (Windows 11 supported via optional OPS module)
- Processor: Quad-core ARM Cortex A55 (up to 1.8GHz)
- RAM: 8 GB
- Internal Storage: 64 GB
Ports & Connectivity:
Wireless:
- Wi-Fi 6 (2.4GHz & 5GHz)
- Bluetooth 5.2
- Gigabit Ethernet (1000 Mbps)
Side I/O Ports:
- 2x HDMI-In
- 1x VGA-In
- 1x Audio-In
- 1x HDMI-Out
- 1x USB Touch
- 1x Audio-Out (3.5mm)
- 1x SPDIF-Out
- 1x RS-232
- 2x RJ-45
- 2x USB 3.0
- 1x USB 2.0
- 1x OPS PC Slot
Front I/O Ports:
- 1x HDMI-In
- 1x USB Touch
- 2x USB 3.0
- 1x USB Type-C (65W Power Delivery)
Audio:
- Speakers: 2 × 16W built-in stereo speakers
- Audio Features: High-quality sound for classrooms and hybrid learning
Dimensions & Weight:
- Product Dimensions (L × H × W): 170.9 × 102 × 8.8 cm
Power:
- Power Input: 100–240V AC, 50/60 Hz
- Typical Consumption: 200W
- Maximum Consumption: 360W
- Standby Power: 0.5W
Education-Centric Software & Services:
- OneScreen Class – Interactive Q&A, polls, quizzes for live classes
- OneScreen LearningHub – Streamlined web conferencing, session recording, room creation
- OneScreen Write – Smart whiteboard with cloud integration & tools
- OneScreen Share – Two-way device projection (up to 9 devices at once)
- OneScreen Central – Cloud-based device management and app control
- OneScreen Accounts – Personal profiles with Google/Microsoft cloud drive integration
- WPS Office – Built-in document viewer (Word, Excel, PPT, PDF)
- Multitasking – Split screen & multi-window app operation
- Additional Tools – Stopwatch, screen capture, screen recorder, spotlight, freeze
Included Accessories:
- 1x HDMI Cable
- 1x Power Cable
- 1x USB Touch Cable
- 1x Type-C Cable
- 2x Stylus Pens (anti-bacterial coating)
- 1x Remote Control
- Wall Mount Kit (VESA 800×400)
Warranty & Certifications:
- Warranty: 3-Year Standard Warranty
- (Extended and advanced hardware warranty options available)
- Certifications:
- CE
- UL
- FCC
- RoHS
- Energy Star
- WEEE
- CB
Support & Training:
- 24/6 Free Live Support via Chat, Phone, Email & Video
- Screen Skills Guru service for training, demos, and troubleshooting
- Multi-language Support
